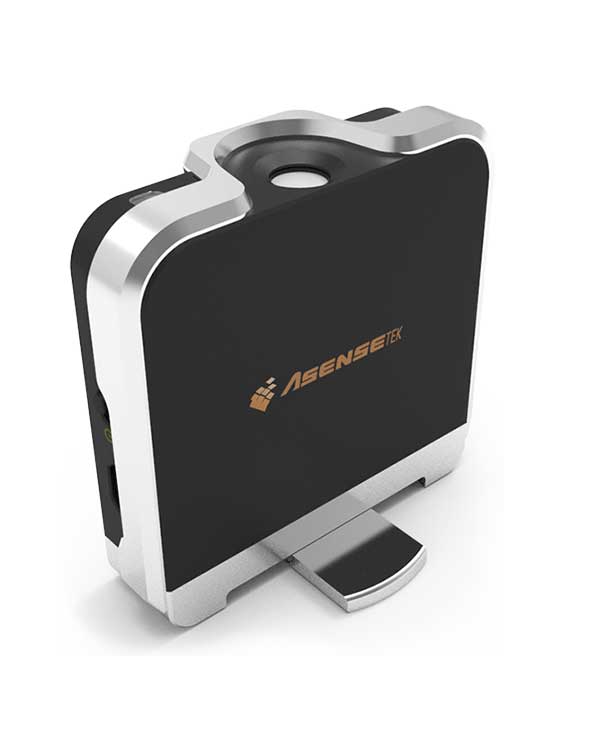

Introducing the
Lighting Passport TM
The World's First Smart Handheld Spectrometer
Handled, Lightweight, and Portable
Compatible with the latest iOS and Android devices
Uses Bluetooth technology to allow remote measurement sharing
Starting at $1,295.00
PRODUCTS
SOFTWARE
KNOWLEDGE
SERVICES & FAQ

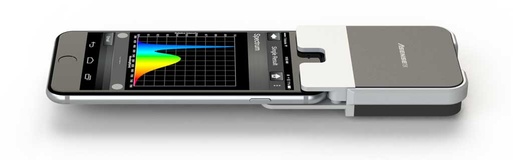

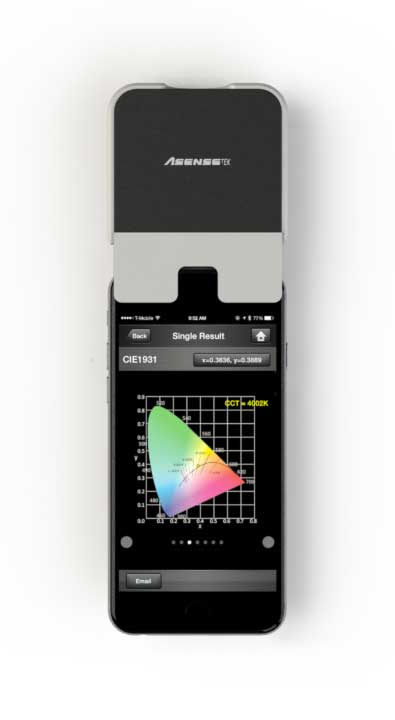

The Lighting Passport combines your smart device (iOS, Android) with a professional spectrometer via Bluetooth Technology.
77
GRAMS.
17
MM THIN
8
NM OPTICAL RESOLUTION
90
LIGHTING PARAMETERS
Best in Class Light Meter
Lightweight and Powerful
At 68.5mm by 56mm, with a thickness of 17mm and weighing only 76.5g, the Lighting Passport offers a slim and compact light testing solution.
Accurate Measurements
Measures up to 90 different parameters among the different available apps with up to 8nm Optical Resolution, 50~50,000lux Illuminance Range, 380~780nm Wavelength Range and 6ms~16s Integration Time.
See Full Specs
Smart Devices Compatibility
Support Android 5.0+ and the latest devices.
Support IOS 12.1+ and the latest devices
Learn More
Support IOS 12.1+ and the latest devices Learn More
Remote Data Acquisition
Allows precise, rapid real-time remote light measurements for user-flexibility powered by Bluetooth Technology
The Lighting Passport completely supports the lighting supply chain.
R&D
Provides preliminary test results to ensure product quality during the development phase.
Manufacturer
Allows production process sampling and product consistency quality control before shipping.
Sales/Retailer
Attracts customer’s attention in exhibitions and stores with on-site product demos.
End-User
Helps designers pick the ideal light fitting and checking the consistency of lights.
Illuminance Range: 5~50,000 lux One-Year Warranty: Yes
Flicker, Temperature and Relative Humidity Sensors: No
Spectrum Genius PC Standard: No
No
Illuminance Range: 5~50,000 lux One-Year Warranty: Yes
Flicker, Temperature and Relative Humidity Sensors: Yes
Spectrum Genius PC Standard: Yes
$200.00 /ea. *$100.00
Not in stock
Illuminance Range: 5~50,000 lux One-Year Warranty: Yes
Flicker, Temperature and Relative Humidity Sensors: Yes
Spectrum Genius PC Standard: Yes
Yes
Not in stock
Illuminance Range: 5~50,000 lux One-Year Warranty: Yes
Flicker, Temperature and Relative Humidity Sensors: Yes
Spectrum Genius PC Standard: Yes
Yes

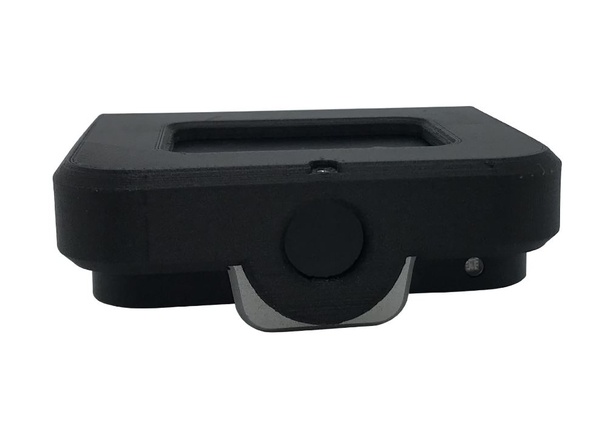

Neutral Density Filter
-
ND filter enables light measurement from 50,000 to 200,000 Lux
-
Compatible with the Essence Pro, Standard Pro and Flagship Pro
-
Provided with ND filter case for easy attachment and removal
-
Measured illuminance correction factor = 4.17X
-
Measured color correlated temperature correction factor = 0.93X
TRYING TO DECIDE WHICH MODEL IS BEST SUITED FOR YOU?
Give us a call at 1-800-253-4107 , or e-mail us and we will assist you immediately.
Find out which model fits your needs.
LIGHTING PASSPORT
ESSENCE PRO SET
Optical Resolution: 10 nm
Measurable: 5~50,000 lux
Reliable Chromaticity: 100~50,000 lux
Repeatability (2σ)
LIGHTING PASSPORT
STANDARD AND FLAGSHIP* SET
Optical Resolution: 8 nm
Measurable: 5~50,000 lux
Reliable Chromaticity: 50~50,000 lux
Repeatability (2σ)
*Specifications for the
Flagship Set
which includes an
iPod Touch 5
crated in a metallic frame.
Available Apps
SPECTRUM GENIUS
MOBILE
Combined with the Lighting Passport Standard or Flagship model, Spectrum Genius Mobile provides more than 36 precise lighting parameters.
Combined with the Lighting Passport Standard or Flagship model, Spectrum Genius Mobile provides more than 36 precise lighting parameters.
Additional Features:
-
ACIE 1931 & 1976
-
Flicker
-
DTM-30-15
- ACIE 1931 & 1976
- Flicker
- DTM-30-15
SPECTRUM GENIUS AGRICULTURAL
Professional application to evaluate, select and monitor horticultural grow lights and produce indoor plants more efficiently with measurements of up to 28 lighting parameters.
Professional application to evaluate, select and monitor horticultural grow lights and produce indoor plants more efficiently with measurements of up to 28 lighting parameters.
Key Features:
-
A5 Meters in One
-
PPFD & YPFD
-
DLI
- A5 Meters in One
- PPFD & YPFD
- DLI
SPECTRUM GENIUS
STUDIO
Allows professionals to get full and detailed information about the
Television Consistency Index (TLCI) of a specific light source or the entire set up.
Allows professionals to get full and detailed information about the
Television Consistency Index (TLCI) of a specific light source or the entire set up.
Additional Features:
-
TLCI
-
TLMF
-
Spectrum
- TLCI
- TLMF
- Spectrum
SPECTRUM GENIUS
TRANSMITTANCE
Shows information about the Original Spectrum, Reduction Spectrum, Average Transmittance, Assigned Transmittance, and Assigned Rejection.
Shows information about the Original Spectrum, Reduction Spectrum, Average Transmittance, Assigned Transmittance, and Assigned Rejection.
Additional Features:
-
Average Transmittance %
-
Photonic Transmission %
-
Rejection %
- Average Transmittance %
- Photonic Transmission %
- Rejection %
SPECTRUM GENIUS
MOBILE PLUS
This professional application (SGM+) will be synchronized with
Spectrum Genius Cloud Service
. Additionally, you can invite other users to view your records, or publish on the cloud service and share to everyone on the planet.
This professional application (SGM+) will be synchronized with Spectrum Genius Cloud Service . Additionally, you can invite other users to view your records, or publish on the cloud service and share to everyone on the planet.
Key Features:
-
Comparison mode
-
Cloud Service connection
-
Easily share on social networks
- Comparison mode
- Cloud Service connection
- Easily share on social networks
LIGHTING
NAVIGATOR
Users can rapidly acquire CCT, CRI, illuminance and spectrums by measuring light sources to understand basic information of specific light sources.
Key Features:
-
CCT
-
CRI
-
Spectrum
-
Illuminance
- CCT
- CRI
- Spectrum
- Illuminance
SPECTRUM GENIUS
ESSENCE
SGE provides you with friendly UI and rich information critical to everyone's concerns about light and color. You can measure CCT, CRI, CQS, Foot Candle, CIEx, CIEy and more!
Key Features:
-
Spectrum (380nm~780nm)
-
Illuminance (lux)
-
Flicker
-
Comparison
- Spectrum (380nm~780nm)
- Illuminance (lux)
- Flicker
- Comparison
SPECTRUM GENIUS
ESSENCE PLUS
Not only keeps the function of “Spectrum Genius Essence” (SGE+), but works with “Spectrum Genius” Cloud Service, “Spectrum Genius Essence Plus” (SGE+) can be easily operated by smart phone, tablet and personal computer
Key Features:
-
Spectrum Genius Cloud Service
-
Illuminance (lux)
-
Flicker
-
Comparison
- Spectrum Genius Cloud Service
- Illuminance (lux)
- Flicker
- Comparison
WANT TO SEE THE LIGHTING PASSPORT™ IN ACTION?
Register now for a personalized virtual live demo by one of our experts.
How can the Lighting Passport grow your business ?
Ario Lighting
Dale Dell'Ario
CTO/Co-Founder
Sidock Group Design Studio
Joseph Oranchak
Sr. Product Leader
Ario Lighting
Dale Dell'Ario
CTO/Co-Founder
SORAA
Charles Selander
Dir. of Specification Sales
Introducing the
Spectrum Genius Cloud Service.
The Spectrum Genius Cloud Service is the first Cloud Platform containing world data and knowledge on light fixtures and lighting applications.
Upload & access measurement records in one-click
Research and compare light spectrums from around the world
Print out professional lighting reports & more!

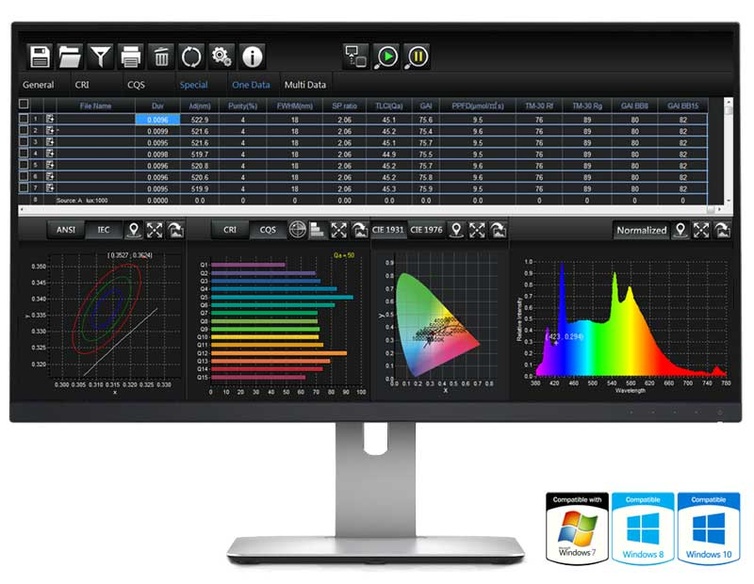

PC Analysis
Software Support.
Spectrum Genius PC is a software package used for analyzing Lighting Passport data and creating reports.
User friendly interface
Flexible data analysis, filter, and consolidation
Personalized report generation with company logo
PDF printable report
Take a look on the specificities of Spectrum Genius PC Standard
SPECTRUM GENIUS PC
STANDARD
Free with Lighting Passport Standard and Flagship*
Language
Windows XP
Windows 7
Windows 8
Windows 10
10 data limit for once
Team Profile
Steeve Lavoie
Founder and creative mind, citizen and entrepreneur of the world, Steeve has 22 years of experience in the photonics field. Hold a degree in analytical chemistry and great experience in instrumentation, UV-VIS-Near spectroscopy and many photonics technologies.
Rez Mani
Rez has a M.Eng in Engineering Physics from McMaster University and a PhD in optical instrumentation from York University. He has been working as an application scientist for Allied Scientific Pro since the end of 2017. He provides customer support.
Ricky Lebeau
Product Manager for Allied Scientific Pro, Ricky has specialized experience in a variety of spectrometer products and brings a strong technical background to support customers with their questions in software, APP or hardware. Ricky is always willing to help with fast responses and optimal solutions.
Les Kacev
Les has a strong experience in Sale of UV and VIS handheld spectrometers as well as in Spectral Design and Business Strategy and Pricing Policy. Advocate of human centric lighting, UV Germicide consultant and specialist in quality of light, color and its measurement.
Meet some of our customers
