SUPERIOR QUALITY INTEGRATING SPHERES
Our wide selection of integrating spheres are custom built following your exact specifications using premium materials and precision engineering. We offer a rigoroust processus of customer-manufacturer consultation to ensure all demands are met.
GET YOURS NOW
PRECISION ENGINEERING
HIGHT PRECISION CUSTOM DESIGN FROM 35 MM TO 3000 MM DIAMETER
PRECISION ENGINEERING
HIGHT PRECISION CUSTOM DESIGN FROM 35 MM TO 3000 MM DIAMETER

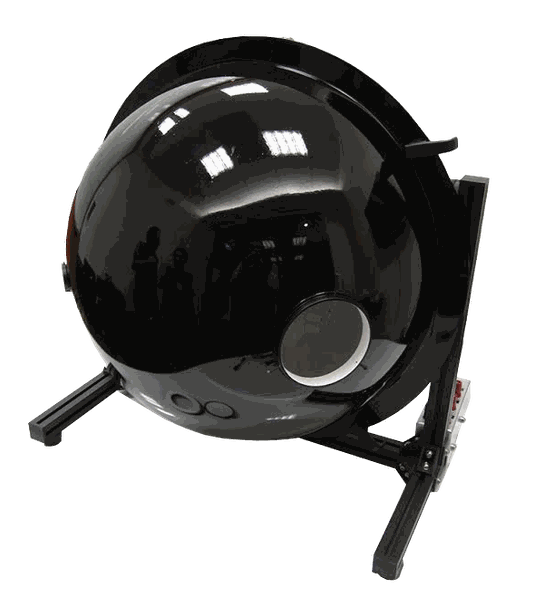

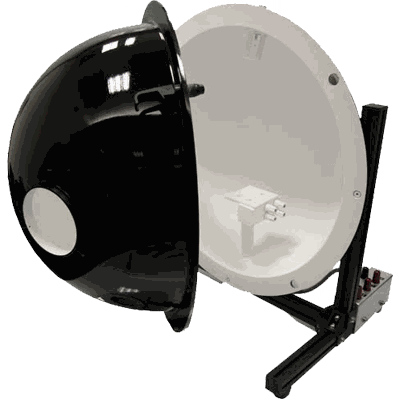

PREMIUM QUALITY INTEGRATING SPHERES
Small to large sized integrating spheres for photometry or radiometry
Our spheres are made of fiberglass or aluminum and are perfect for testing lighting efficiency. Our products are of the highest standards and have been sold to numerous high-profile and demanding customers. Check out some of the great features of our integrating spheres.

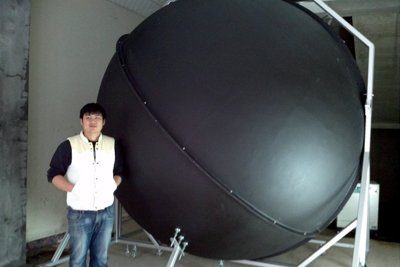

35 MM TO 3000 MM DIAMETER
Pick your diameter from our various standard sizes and we will design an integrating sphere to fit your needs.
CUSTOM PORT CONFIGURATION
We offer 2 to 3 two-step ports with any configuration for maximum convenience and ensuring that minimal light is lost.
HIGH PURITY BASO4 COATING
Developed through 25 years of experience, our paint has both an attractive reflection spectrum and long durability.
INCLUDES POWER SUPPLY AND SIDE HOLDER
Our spheres come with a power supply and a side support holder to ensure stability.
TWO DIFFERENT REFLECTIVE MATERIALS
We offer two different types of inner-sphere meterials to meet the different requirements from our clients: barium sulfate (BaSO4), and gold-plated.
BARIUM SULFATE(BASO4) _______________________________________________
Cost-effective and well-suited for most measurement applications
High performance and long durability. Check out the Performance Graph
Effective range from 250 nm to 2100 nm and reflectivity of >97% at 550 nm
.

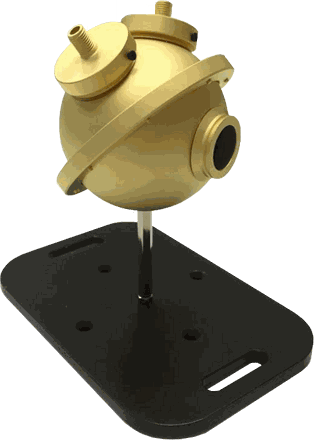

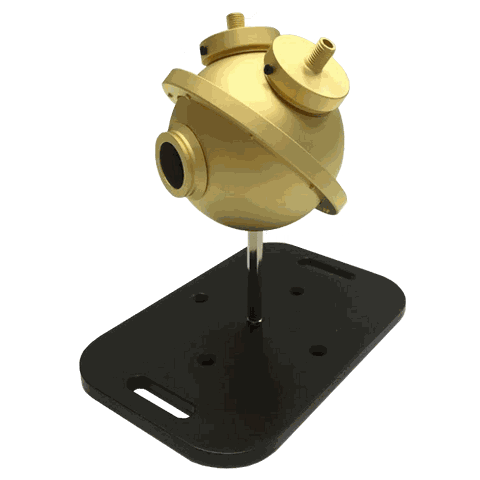

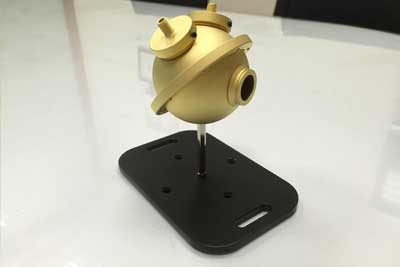

GOLD PLATED __________________________________________________________
Perfect for mid-IR wavelenght applications
Superior reflectance characteristics
INTEGRATING SPHERE APPLICATIONS
RADIANCE AND LUMINANCE
Measure emanating virtual light source created by reflection from a diffuse surface.
MEASUREMENTS OF LEDS
Use an integrating sphere to test LED lights in order to determine photometric parameters such as CCT, CRI, CIE1931 CIE1976, LM-79, NVLAP.
LASER POWER MEASUREMENTS
The sphere photometer offers the advantage of total collection and spatial integration. In the measurement of the highly collimated source such has laser, the sphere offers the avantage of signal attenuation.
SOLID-STATE LIGHTING
Other type of solids-state lighting material can be measure inside an integrating sphere including VCSEL, Diode laser, OLED, etc.
REFLECTION AND TRANSMITTANCE
The measurements are almost always performed spectrally, as fonction of wavelength. Measurement of the reflectance and transmittance of diffuse or scattering materials.
DETECTOR CALLIBRATION
CCD and CMOS imaging sensor can be calibrated using an integrating sphere.
ORDER YOUR INTEGRATING SPHERE
Our 256-bit SSL encrypted online store makes it easy to place a secure order. Choose from more than 10 different standard diameter sizes from 30 mm to up to 3000 mm.
Our team will get in touch with you as soon as you have placed an order to learn more about your needs and ensure all demands are met.
Do no hesitate to Contact Us if you require more information on our products or to request a custom quote before placing an order.
ORDER NOW

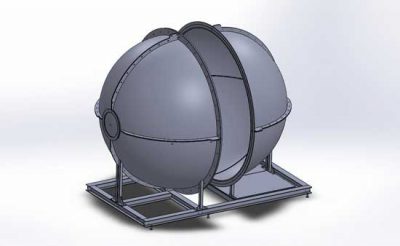

CONCEPTUAL 3D DESIGN
After the initial consultation, our engineers will generate a 3D design of your integrating sphere using SolidWorks 2016 according to your design requirements.
This will allow you to visualize how your integrating sphere will look like and provide feedback to our team for further design modifications.

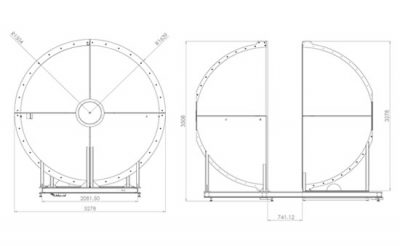

REVIEW OF TECHNICAL DRAWINGS
Our engineers will generate a technical drawing to show the optical configuration of the system. You will have the chance to confirm with our engineers the location and dimensions of the following components:
- Detector Location
- Port Size and Location
- Baffle Size and Location
- External and Internal Diameter
- Dimension and Geometry of the Stand
MANUFACTURING OF THE SPHERE
After the approval of the the technical drawing, we start working on your sphere to deliver it in a timely matter. This includes:
- Aluminium Framing
- Sphere Moulding
- BaSO4 Coating
- Ports Drilling and Baflle Installation
- Final Assembly and Quality Check
DELIVERY, INSTALLATION AND TRAINING
Once finished, our logistic department will coordinate the shipment of the sphere to your door.
- Delivery using DHL Global Forwarding around the globe
- Use your prefer shipment method: Sea Freight or Air Freight
- On-site installation and training at an additional cost

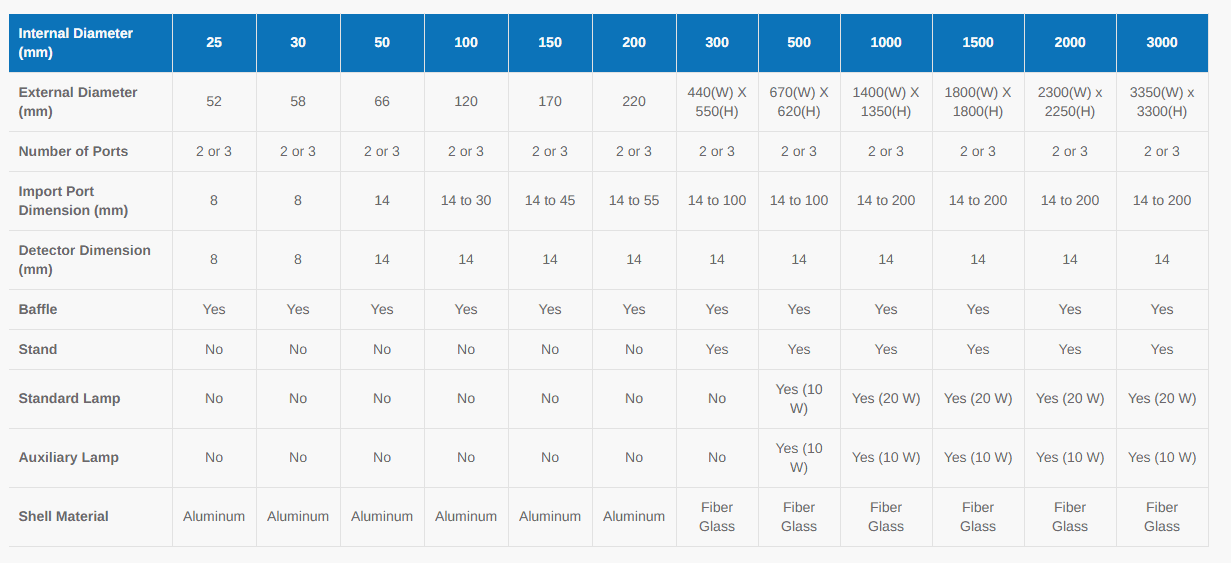

INTEGRATING SPHERE SPECS TABLE
Our integrating spheres are made on-demand according to your requirements. The table listed bellow highlights some of the standard specifications of our products according to their diameter. Click here to learn more about the full specificaitions of our turnkey photometry systems.
SHOP WITH CONFIDENCE
We take customer service seriously and we always ensure to process your transaction smoothly and safely online or with one of our agent on the phone.
12
MONTHS WARRANTY256
BIT ENCRYPTED PAYMENT7
YEARS OF EXPERTISE170
SATISFIED CUSTOMERSSome of our valued clients
We work in close partnership with our clients to ensure that all design needs are met in a timely manner. Our specialists and engineers work closely together to develop tailor-made solutions that meet the industry evolving needs.
COMPLETED PROJECTS
SOME OF OUR WORK
We take pride in what we do. Our high-profile clients come from all around the world and expect the highest design standards, top quality materials and the best manufacturer/customer relationship. Here are some of our recent completed projects.
