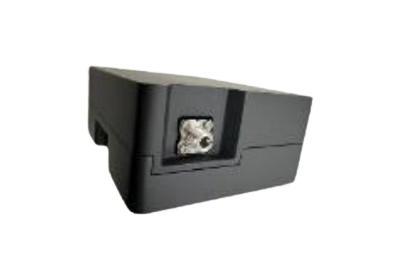

NIRvascan Smart Near Infrared Spectrometer Extended Plus Fiber Optics Model F13 (1600nm to 2400nm)

https://www.alliedscientificpro.com/web/image/product.template/20540/image_1920?unique=403d70e

US $ 6 095,00 6095.0 USD US $ 4 333,14

6 095,00 CA $

Pas disponible à la vente

Cette combinaison n'existe pas.

Conditions générales
Lead time 6-8  weeks, built to order

The NIRvascan is the world's first affordable and portable smart near infrared spectrometer. It covers many field applications and it's configuration is optimized for  fiber input detection.

Diffuse reflectance is the reflection of light from a surface that an incident ray is reflected at many angles rather than just one angle as in the case of specular reflection. Each chemical substance or material substance has their own reflectance spectrum. It is a non-evasive and non-destructive technique.

Avantages of the NIRvascan:

  • Reliable, portable, sensitive with signal to noise ratio of 3000:1
  • Optical resolution peak to peak 12 nm
  • Slit size 25 microns
  • High performance Richardson grating
  • Very-low-noise 24-bit analog-to-digital converter. Converts the analog output of the InGaAs detector into a 24-bit digital value
  • Infrared thermopile sensor that measures ambient and detector temperature
  • APP driven on Android and OS (Iphone, Ipod, Ipad)
  • Bluetooth low energy (BLE) communication protocol with APP or USB
  • Small and compact 59.5x47.5x24.5mm, 60g
  • FCC and CE approved

Applications:

  • Pharmaceutic drugs identification
  • Pill hardness
  • Narcotic identification
  • Plastic identification for recycling
  • Mineral Identification for field exploration
  • Food quality inspection
  • Agricultural plant health monitoring
  • Moisture in material
  • Textile fabrics identification
  • Coating reflectance
  • Paint pigment testing
  • Soil monitoring
  • Conservation of artistic and history works
  • Bacteria detection
  • Fungus detection

Wavelength Range: 1600-2,400 mm

Model Specification: SMA 905 connector for fiber input

Optical Resolution: Typ. 12nm @ 1530nm LD

Signal-to noise ratio: 3000:1 in 1 second scan

Slit Size:  1.8mm * 0.025 mm

Detector: 1mm extended InGaAs (uncooled)

Communication Interface: 1. USB and UART 2. BLE (optional)

Sensors: Ambient humidity and temperature sensors

Power: USB

Dimensions:  59.5 X 48 X 24.6

Weight:  < 65 g
Wavelength Accuracy: Typ, ±1 nm

Illumination ModuleN/A
Scan Capability
Linear / Hadamard / Slew Scan
Cuvette Holder:
N/A
