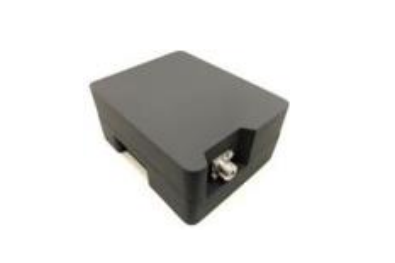

NIRvascan Smart Near Infrared Spectrometer Extended Fiber Optics Model F11 (1350nm to 2150nm)
The NIRvascan is the world's first affordable and portable smart near infrared spectrometer. It covers many field applications and it's configuration is optimized for fiber input detection.
Diffuse reflectance is the reflection of light from a surface that an incident ray is reflected at many angles rather than just one angle as in the case of specular reflection. Each chemical substance or material substance has their own reflectance spectrum. It is a non-evasive and non-destructive technique.
For more extensive information and specification, be sure to visite the NIRvascan website.
Avantages of the NIRvascan:
Reliable, portable, sensitive with signal to noise ratio of 5000:1
Optical resolution peak to peak 12 nm
Slit size 25 microns
High performance Richardson grating
Very-low-noise 24-bit analog-to-digital converter. Converts the analog output of the InGaAs detector into a 24-bit digital value
Infrared thermopile sensor that measures ambient and detector temperature
APP driven on Android and OS (Iphone, Ipod, Ipad)
Bluetooth low energy (BLE) communication protocol with APP or USB
Small and compact 59.5x47.5x24.5mm, 60g
FCC and CE approved
Pharmaceutic drugs identification
Plastic identification for recycling
Mineral Identification for field exploration
Food quality inspection
Agricultural plant health monitoring
Moisture in material
Textile fabrics identification
Paint pigment testing
Conservation of artistic and history works
