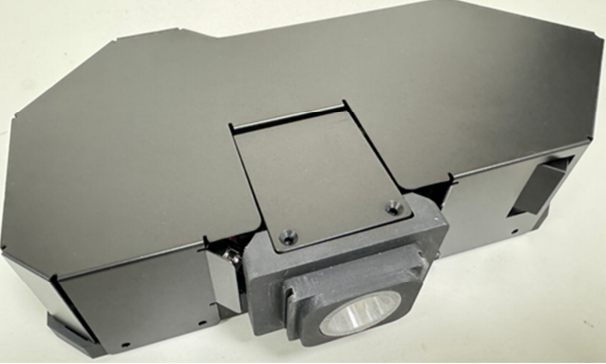

NIRvascan Smart Near Infrared Spectrometer Reflective Model R15 (900nm to 2400nm)
The NIRvascan is the world's first affordable and portable smart near infrared spectrometer with an integrated tungsten halogen light source built in. It covers many field applications and it's configuration is optimized for diffuse reflectance, transmission and fiber input detection.
Diffuse reflectance is the reflection of light from a surface that an incident ray is reflected at many angles rather than just one angle as in the case of specular reflection. Each chemical substance or material substance has their own reflectance spectrum. It is a non-evasive and non-destructive technique.
Avantages of the NIRvascan:
Reliable, portable, sensitive with signal to noise ratio of 3000:1@2200nm
Optical resolution peak to peak 10nm~12 nm
Slit size 1.8mm * 0.025mm
High performance Richardson grating
Illumination module integrated and stable
Very-low-noise 24-bit analog-to-digital converter. Converts the analog output of the InGaAs detector into a 24-bit digital value
Infrared thermopile sensor that measures ambient and detector temperature
APP driven on Android and OS (Iphone, Ipod, Ipad
USB
FCC and CE approved
Applications:
Pharmaceutic drugs identification
Pill hardness
Narcotic identification
Plastic identification for recycling
Mineral Identification for field exploration
Food quality inspection
Agricultural plant health monitoring
Moisture in material
Textile fabrics identification
Coating reflectance
Paint pigment testing
Soil monitoring
Conservation of artistic and history works
Bacteria detection
Fungus detection
