LASER ART

DESCRIPTION

Allied Scientific Pro (ASP) has developed and manufactured a laser cleaning system for the conservation market. Offering full control over a wide range of parameters allows for precise cleaning with the ability to retain patinas.

With a long legacy of expertise in laser nano and micro machining process, ASP is capable of offering a state of the art laser system to address the needs of the conservators. Our laser system is compact, robust and has a long lifetime with low or no maintenance for years. We are using the latest laser and scanner technology to offer high quality performance and speed efficient cleaning without causing damage to the object.

1000 Watts, 500Watts, 200Watts
Long Lifetime, Ultra-robust
Presets easy to use for different surfaces
Controllable laser beam shape

CONTACT US

Give us a call at 1-800-253-4107, or e-mail us and we will assist you immediately.

GET QUOTE >

APPLICATIONS

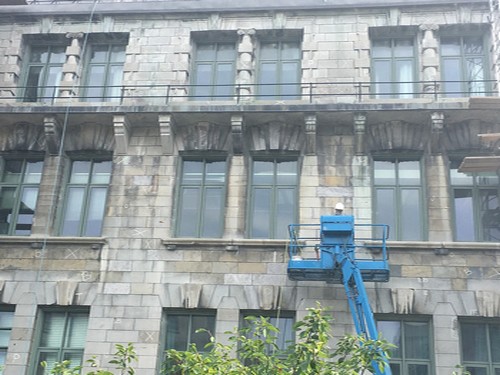

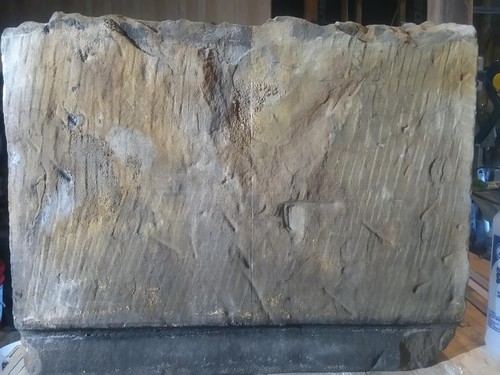

Building Restoration: Stone, Metals, Wood & more

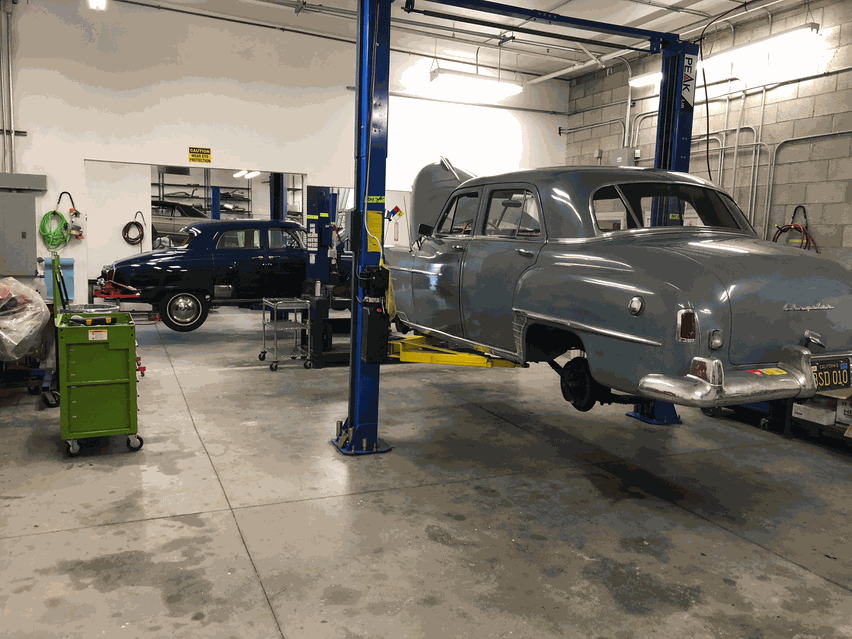

Antique Car Restoration

Art and Sculpture Restoration

Graffiti Removal

COST-SAVING

Minimal Preparation Time. No Disposal Cost. No Additional Gear Needed. Efficient.

Cleantech

Eco-Friendly. No Chemicals. No Blast Media. Consumes Only Electricity

user friendly

No Dangerous Projectiles. Computer Controlled. No Protective Wear Required. Low Noise Operation

SPECIFICATIONS

Laser	Specification	Scanner Head	Specification	Laser Enclosure	Specification
Laser Engine	100, 200, 500,1000 watts available	Flexible Configuration	Software allows for many types of scans; Round, Line, Square. Laser can be shaped to adapt to all types of surfaces	IP Level	IP55
Pulse Duration	10 to 30 nanoseconds	Robust	Made of aluminum, 2 handle bars and protective lens cap	Cooling	4 cooling fans fully protected from water
Cooling	Water-cooled	Working Distance	12 to 12 inches	Handle Bar	Robust handle bars on each side for manual handling
Estimate Lifetime Expectancy	10 years			Extension Electrical Cord	30 feet/120V
Repetition Rate	1 to 55 KHz			Computer	Robust computer or tablet with full control for simple use
Peak Power	Kilowatt			Software	EZClean software included
Design	No moving parts in the laser engine			Laser Presets	3 presets cleaning process included
Voltage & Power Consumption	3x400-480VAC ± 10% 50/60Hz/ 4200Watts

KEY ADVANTAGES OF USING THE LASER CLEANING INSTEAD OF ALTERNATVE METHODS

Cleaning Technique	Laser Cleaning	Dry Ice	Sand Blast	Glass Beads	Walnut Shells	Water Jet	Stream	Chemical Solvents
Waste for Disposal	No	No	Yes	Yes	Yes	Yes	No	Yes
Abrasive	No	No	Yes	Yes	Yes	No	No	No
Toxic Waste	No	No	Yes	Yes	Yes	Yes	No	Yes
Electrically Conductive	No	No	No	No	No	Yes	Yes	Yes
Consummables Needed	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Other Gear Required	No	Yes	Yes	Yes	Yes	No	Yes	Yes
Preparation Intensive	No	No	Yes	Yes	Yes	Yes	Yes	Yes
Environment Friendly	Yes	CO2 No	No	No	No	No	No	No
Noise Level	Very Low	Very High	Very High	Very High	High	High	Medium	Low
Vibration Level	No	Yes	Yes	Yes	Yes	Yes	Medium	No
Dry Process	Yes	Yes	Yes	Yes	Yes	No	No	No
Hazardous	Low	High	Very High	Very High	Very High	High	High	Medium
Causes Airbone Particles	No	Yes	Yes	Yes	Yes	Yes	Yes	No
Works on Hot or Cold Surfaces	Yes	Sometimes	Yes	Yes	Yes	No	Yes	No
Extra Nozzle or Tools to Shape Flow	No	Yes	Yes	Yes	Yes	Yes	Yes	No
Performance Caomparison	Excellent	Great	Ok	Ok	Limited	Ok	Poor	Limited
