DESCRIPTION
Allied Scientific Pro (ASP) has developed and manufactured a laser cleaning system to replace traditional blast media methods, sand, glass beads or dryice. Offering full control over a wide range of parameters allows for precise cleaning with the ability to retain patinas or industrial parts intact.
With a long legacy of expertise in laser nano and micro machining process, ASP is capable of offering a state of the art laser system to address the needs of the industrial applications. Our laser system is compact, robust and has a long lifetime with low or no maintenance for years. We are using the latest laser and scanner technology to offer high quality performance and speed efficient cleaning without causing damage to the object.
CONTACT US
Give us a call at 1-800-253-4107, or e-mail us and we will assist you immediately.
APPLICATIONS

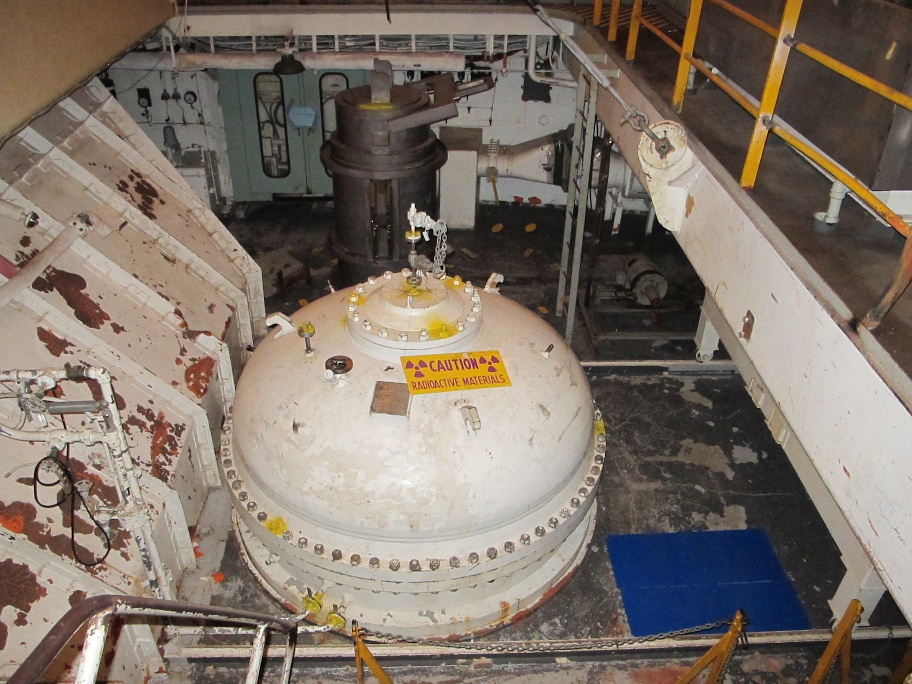

Nuclear Decontamination

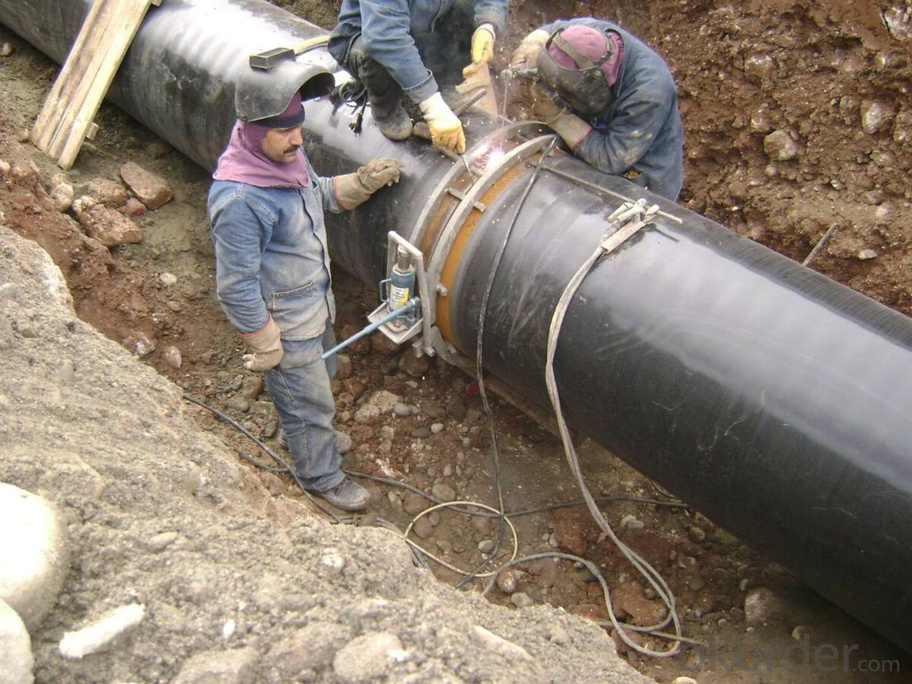

Welding Preparation

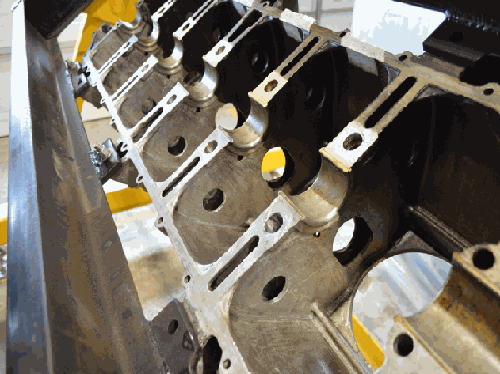

Grease Cleaning Engines

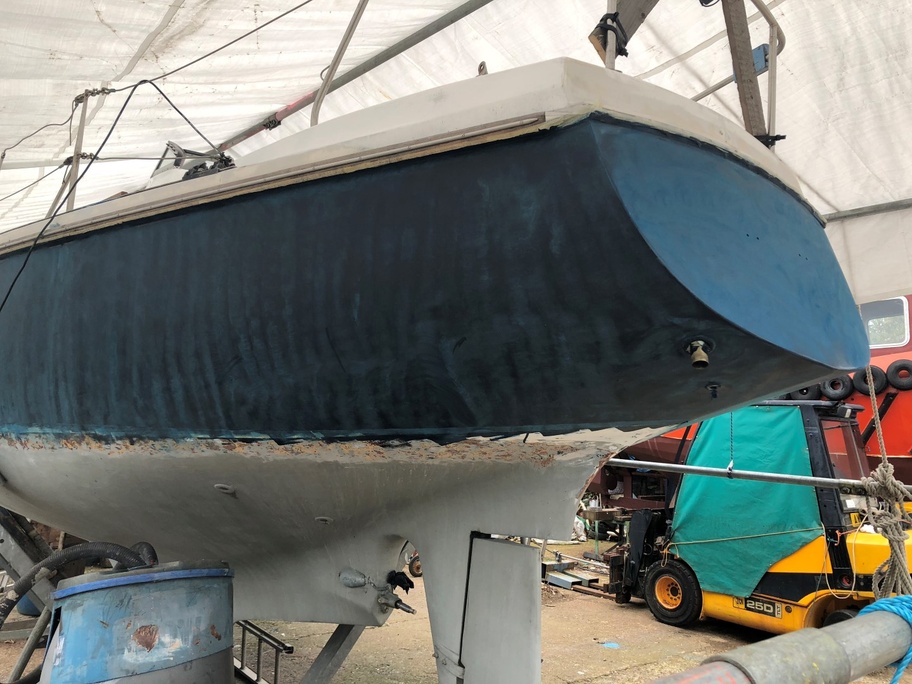

Coating Removal
COST-SAVING
Minimal Preparation Time. No Disposal Cost. No Additional Gear Needed. Efficient.
Cleantech
Eco-Friendly. No Chemicals. No Blast Media. Consumes Only Electricity
user friendly
No Dangerous Projectiles. Computer Controlled. No Protective Wear Required. Low Noise Operation
SPECIFICATIONS
|
Laser
Performance |
Specifications | Scanner Head | Specifications |
|
Laser Engine
|
100 W
|
Beam Size
|
10 - 100 mm |
| Pulse Duration | 10 to 250 nanoseconds | Beam Shape | Linear |
|
Pulse Repetition Rate
|
1 - 1000 KHz
|
Working Distance
|
18 cm , 30 cm
|
|
Output Wavelength
|
1064 nm
|
Cable Length
|
5.8 m
|
|
Beam Quality
|
< 2
|
Drawing Links
|

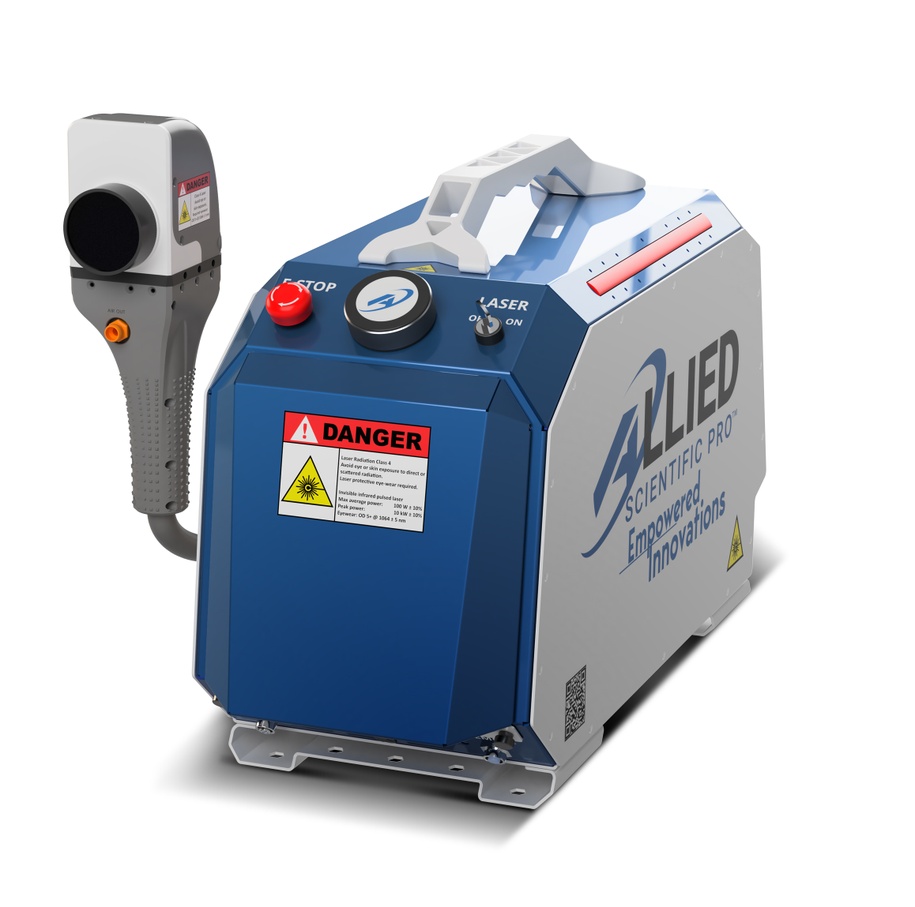

100W - Portable
(GEN2020) |
|
Peak Power
|
6 KW
|
|
|
|
Cooling System
|
Air - Cooled
|
|
|
|
Estimated Life Expectancey
|
60K hours
|
|
|
|
Fume Extraction System
|
Clip-On Vacuum to Scanner Head
|
|
|
|
IP level
|
IP55
|
|
|
|
Handling
|
Manual Use
|
|
|
|
User Interface
|
Touch Encoder
|
|
|
|
Voltage
|
110 V
|
|
|
|
Amperage
|
5 A
|
|
|
|
Power
|
0.5 KVA
|
|
|
|
Power Connector (NEMA)
|
5 - 15
|
|
|
|
Weight
|
22 Kg
|
|
|
|
Dimensions
L x W x H (mm) |
|
|
|
KEY ADVANTAGES OF USING THE LASER CLEANING INSTEAD OF ALTERNATIVE METHODS
| Cleaning Technique | Laser Cleaning | Dry Ice | Sand Blast | Glass Beads | Walnut Shells | Water Jet | Stream | Chemical Solvents |
| Waste for Disposal | No |
No
|
Yes
|
Yes
|
Yes
|
Yes
|
No |
Yes
|
| Abrasive |
No
|
No
|
Yes
|
Yes
|
Yes
|
No | No | No |
| Toxic Waste |
No
|
No
|
Yes
|
Yes
|
Yes
|
Yes
|
No |
Yes
|
| Electrically Conductive |
No
|
No
|
No | No | No |
Yes
|
Yes
|
Yes
|
| Consummables Needed |
No
|
Yes |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Other Gear Required |
No
|
Yes |
Yes
|
Yes
|
Yes
|
No |
Yes
|
Yes
|
| Preparation Intensive |
No
|
No |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Environment Friendly | Yes | CO2 No | No | No | No | No | No | No |
| Noise Level | Very Low | Very High |
Very High
|
Very High
|
High
|
High | Medium | Low |
| Vibration Level | No |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Medium | No |
| Dry Process | Yes |
Yes
|
Yes
|
Yes
|
Yes
|
No | No | No |
| Hazardous | Low | High | Very High | Very High | Very High | High | High | Medium |
| Causes Airbone Particles | No |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
No |
| Works on Hot or Cold Surfaces | Yes | Sometimes |
Yes
|
Yes
|
Yes
|
No | Yes | No |
| Extra Nozzle or Tools to Shape Flow | No | Yes |
Yes
|
Yes
|
Yes
|
Yes | Yes | No |
| Performance Caomparison | Excellent | Great | Ok | Ok | Limited | Ok | Poor | Limited |
VIDEOS OF THE LASERBLAST
PHOTOS OF THE LASERBLAST

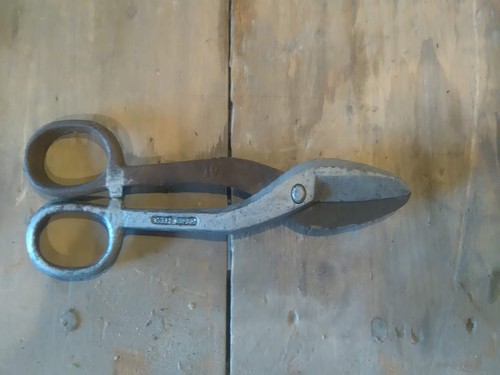

Laser cleaning is great for restoring tools. This tool was recovered in rusted as seen on the left handle.
Post laser cleaning. Restored back to its original state.

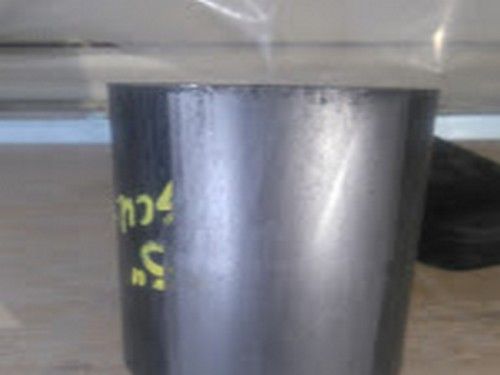

Laser cleaning completely ablated the black paint on this steel object, restoring it to its original look

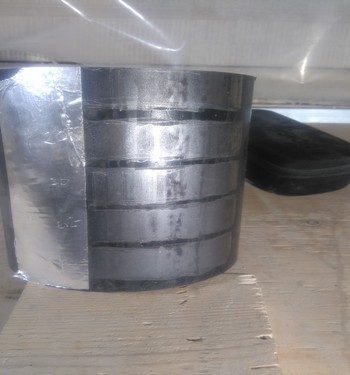

Laser cleaning completely ablated the black paint on this steel object, restoring it to its original look

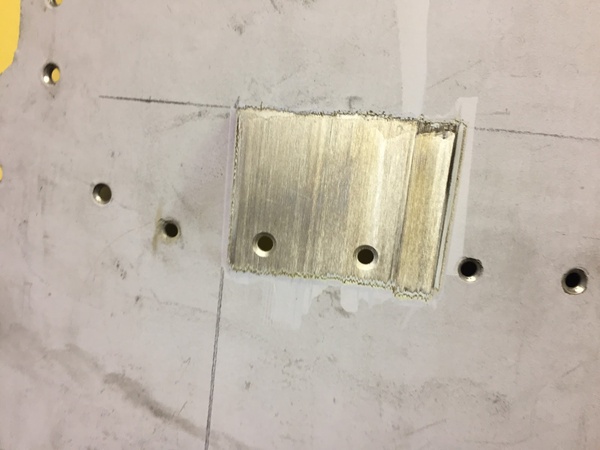

Ablated material from an 737 airplane door part
