LIGHTING NAVIGATOR

We are entering into a new era of portable light testing. The Lighting Navigator spectrometer will become your personal lighting adviser, it's an integrated sensor system gathering lighting data on the fly from any light source. It checks compliance with various international standards including CIE. It also helps you to make design and validation decisions in just a few seconds.

AVAILABLE FOR ONLY $750

     Buy NoW



The easiest way to
do your lighting
business

Quickly obtain CCT, CRI, Illuminance and spectrum data to assess whether a light source meets specific standards.

The most innovative spectrometer design on the market

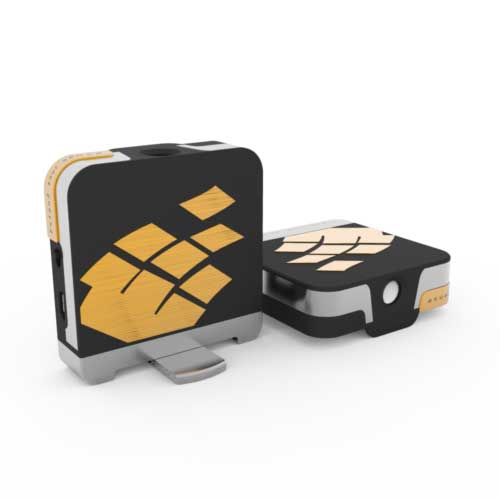

The featherlight hardware design of the Lighting Navigator makes it highly compact and portable.
It is driven by a patented optical spectrum engine that provides precise and reliable readings.
Functions
Filter Measurement Comparison

Measurement Capability
CCT
CRI(Ra)
Illuminance
Spectrum



NIST Traceability
Each Lighting Navigator is NIST-traceable

Other Features
Photograph, Note
Auto Connection, Standard, Estimation,
GPS Orientation,
Social Media Integration

Main functions

Filter Function

The Filter function comes pre-loaded with a suite of commonly-used international lighting standards which enable users to easily determine the suitability and safety of lighting conditions as well as specify custom user parameters.


Measurement Function

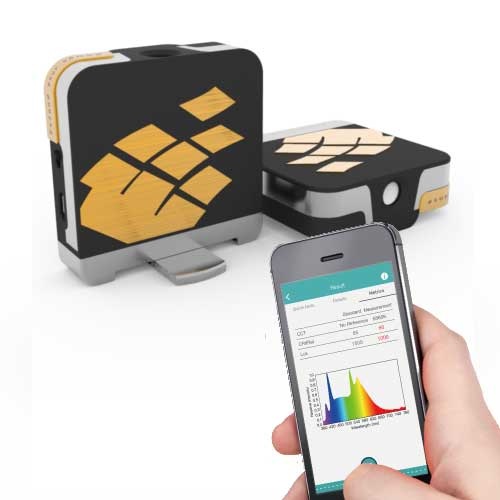

The Measurement function allows users to quickly obtain CCT, CRI, illuminance and spectrum data in order to assess whether a light source meets specified standards based on the user’s selected Filter.

Comparison Function

The Comparison function allows users to efficiently compare two datasets collected using the Measurement function, including a graph comparison for spectrum readings, CCT, CRI and illuminance values. With the Comparison function, users can easily showcase differences between various products to customers, purchasers and interior designers anywhere, anytime.

Odoo • Image and Text

Lighting Navigator Specs
Discover all the key features of the Lighting Navigator and how it can help you increase your efficiency at work significantly.



Size
Width: 63.1 mm
Depth: 17.5 mm
Height: 63.1 mm
Net Weight
92 g ± 1 g (with stand)
Wavelength Range
380 ~ 780 nm
Illuminance Range
Measurable: 5 ~ 50,000 lux
Optical Resolution (FWHM)
10 nm
Accuracy(@ 1,000 lux Standard Light Source)
Illuminance:± 5 %
CCT:± 3.5 %
Integration Time 6 ms ~ 16 s
Operating Temperature / Humidity Range
0 ~ 35 °C, relative humidity under 80% with no condensation
Storage Temperature / Humidity Range
-10 ~ 45 °C, relative humidity of 85% or less (@ 35 °C) with no condensation

            Pricing





New Lighting Navigator

  • Handheld, Lightweight and Portable
  • Measures CCT, CRI, Illuminance, Spectrum
  • Allows you to comply with Lighting Standards from around the world
$750.00

    GO to store


Drawings and Documents


Lighting Navigator instructions            Download

Lighting Navigator  Quick Guide           Download
